AP14--BK7 Dove Prisms
| Material: |
BK7 grade A optical glass |
 |
| Dimension (A,C,h): |
+0.0/-0.2mm |
| Flatness: |
 /2 @632.8nm |
| Surface Quality: |
60/40 scratch and dig |
| Angle Tolerance: |
+3 arc minutes |
| Bevel: |
<0.25mmX45o |
| Coatings: |
without coating |
|

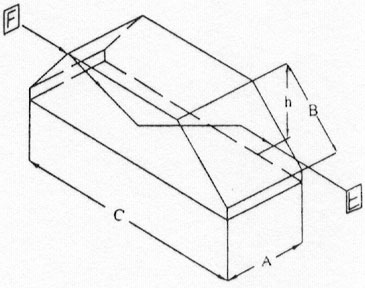

(mm) |
| Catalog No. |
A |
B |
C |
h |
| AP14-005 |
5.0 |
7.07 |
21.1 |
5.0 |
| AP14-010 |
10.0 |
14.14 |
42.3 |
10.0 |
| AP14-015 |
15.0 |
21.21 |
63.4 |
15.0 |
| AP14-020 |
20.0 |
28.28 |
80.0 |
20.0 |
| Note: |
1: Catalogue prisms are supplied without coating.
2: We can coat according to customer's requirements.
3: Custom and OEM requirements are always welcome. |
|
