AP15--BK7 Roof Prisms

Material:	BK7 grade A optical glass
Dimension (A,C,h):	+0.0/-0.2mm
Roof Angle:	+3 sec.
Other Angles:	+3 min.
Flatness:	/2 @632.8nm
Surface Quality:	60-40 scratch and dig
Bevel:	<0.25mmX45^o
Coatings:	without coating

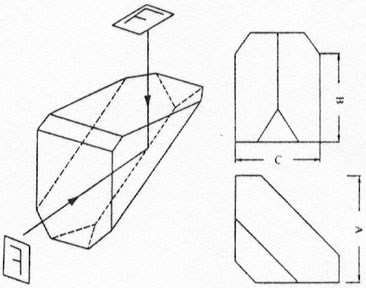

	(mm)
Catalog No.	A	B	C
AP15-027	27.4	20.0	20.0
AP15-041	41.1	30.0	30.0

Note:

1: Catalogue prisms are supplied without coating.
2: We can coat according to customer's requirements.
3: Custom and OEM requirements are always welcome.
